POWERZONE mono subwoofer car amplifier highlighted with aggressive heatsink elements feature SPEED-FET output devices and QTD Technology produces 1000 watts of power in a 1-ohm stable application. Bass remote is included.
Specifications:
| Weight | 4.85 lbs |
| Dimensions | 13.25 × 7 × 3.25 in |
| Type | Amplifier |
| Brand | Crunch |
| Series | POWERZONE 2 |
| Category | Mobile |
| Condition | New |
| Color | Black/Gray |
| Warranty | 1 Year |
| Compatible Vehicles | Universal |
| Amp Class | Class D |
| Amp Total Channels | 1 |
| Amp Max Power (watts) | 1500 |
| Amp Power @ 1 Ohm (ch x watts) | 1 x 1500 |
| Amp Power @ 2 Ohms (ch x watts) | 1 x 750 |
| Amp Power @ 4 Ohms (ch x watts) | 1 x 375 |
| Amp Mono Bridged @ 4 Ohms (ch x watts) | N/A |
| Amp Crossover | Variable Electronic 12dB Per Octave |
| Amp Variable High Pass Crossover 12dB per Octave | N/A |
| Amp Variable Low Pass Crossover 12dB per Octave | 40Hz-300Hz |
| Amp Tone Control / Parametric EQ | Built-in Bass Control |
| Amp Bass Boost | 0-12dB |
| Amp Subsonic Filter | 10Hz-40Hz |
| Amp Variable Voltage | 0.2-6V |
| Amp Frequency Response | 10Hz-500Hz |
| Amp Total Harmonic Distortion (THD) | < 0.1% |
| Amp Speaker Level Audio Inputs | Yes |
| Pre-amp Audio Outputs | Full Range, RCA |
| Amp Power Terminal 12v/GND | 4 AWG |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Amp Fusing | External 60A |
Features:
RCA Inputs
- Low voltage RCA inputs produce the highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.
High Level Inputs
- High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included.
Operation Mode
Crossover Type
- Variable electronic crossovers allow for complete control of the sound.
Electronic Equalizer
- Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.
Class / Topology
- Very efficient D-Class to drive additional power while remaining a small footprint.
Output Device Technology
- Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.
Heat Sink
- QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions.
Power Supply
- Rugged MOSFET Pulse Width Modulation power supply. Allows amplifier to product efficient power without taxing the vehicle electrical system.

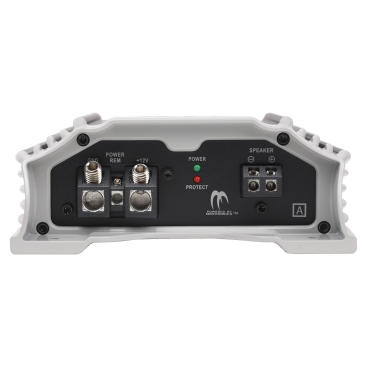

Output Connections
- Nickel-plated brass connection with hex set screw terminals allows for secure connection and resist erosion.
Connection Type
- Secure connection for all power, ground and speaker connections.
LED System Protection Circuitry Diagnostics
- Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
Bass Remote Included
- Wired Bass Remote allows adjustments to bass frequencies from the remote which can be mounted anywhere in the vehicle. CR-U-01
